Product Description

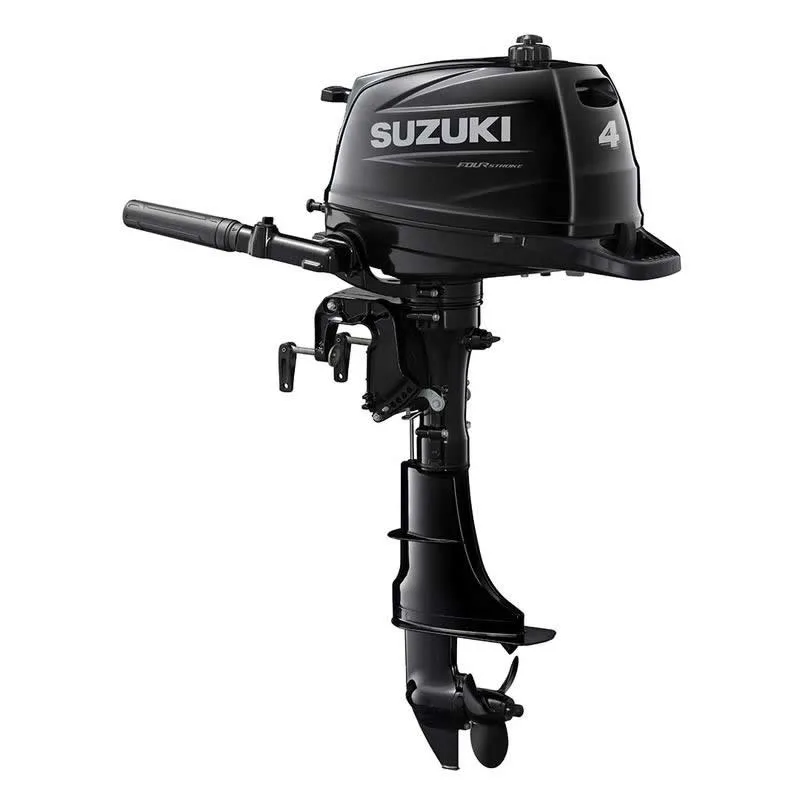

The Suzuki 4hp outboard motor model DF4AS3 is perfect for canoes, small fishing boats, and small to medium sized tenders and inflatables. The 4 hp Suzuki outboard boasts the largest displacement of any one cylinder outboard in this hp class. A full-size twist grip throttle, tiller steering, forward-neutral-reverse gear shift with large easy-to-use shift lever, 15 inch shaft, digital CDI ignition and integral fuel tank are just a few of the features you’ll find standard on the 4hp. This model comes equipped with the Suzuki 5-year warranty.
Additional information
| Horsepower | 4 HP |
|---|---|
| Shaft Length | 15″ (Short) |
| Starter Type | Manual |
| Tilt & Trim | Manual |
Â
SPECS
| MODEL | DF4AS3 |
|---|---|
| SKU | DF4AS3-21 |
| WEIGHT | 52.0 lb |
| MANUFACTURER | Suzuki |
| COUNTRY OF MANUFACTURE | Thailand |
| HORSEPOWER | 4hp |
| SHAFT LENGTH | 15″ (Short) |
| STEERING | Tiller |
| STARTING | Manual |
| TRIM & TILT | Manual |
| FUEL DELIVERY | Carburetor |
| FUEL TANK | Internal |
| CYLINDER(S) | 1 |
| DISPLACEMENT | 138 cc (8.4 cubic inches) |
| BORE AND STROKE | 2.38 x 1.89 inches |
| FULL THROTTLE RPM RANGE | 4000-5000 RPM |
| IGNITION SYSTEM | Digital Capacitor Discharge Ignition System |
| INDUCTION SCAVENGING | OHV |
| VALVES PER CYLINDER | 2 |
| FUEL TYPE | Unleaded Gasoline (87 octane) |
| FUEL TANK / FUEL LINE | .26 US Gallon Integral Fuel Tank |
| OIL TYPE | SAE 10W-30 or SAE 10W-40 |
| OIL CAPACITY | 24 fl oz. (700 mL) |
| LUBRICATION | Wet Sump |
| ALTERNATOR | Optional 12V 5A (installation required) |
| COOLING SYSTEM | Water-Cooled |
| SALTWATER RATED | Yes |
| GEAR RATIO | 1.92:1 |
| GEAR SHIFT | Forward-Neutral-Reverse (starboard side lever) |
| PROPELLER | 3-Blade Aluminum 7.5″ Dia. x 6.5″ Pitch |
